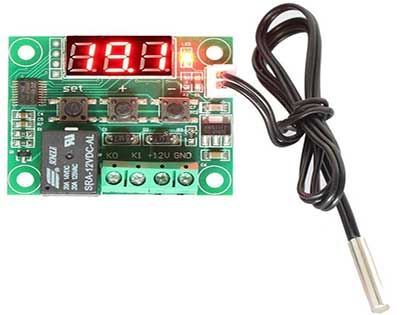

W1209 Temperature Thermistor Controller On/Off Switch -50-110C

Description

Specifications:

Specifications Model: W1209
Dimensions: 48 * 40mm
Temperature control mode: ON / OFF
Temperature range :-50-110
ResolutionWhen temperature is 0.1 the resolution is -9.9~99.9, other temperature segment is 1
Control accuracy: 0.1
Hysteresis accuracy: 0.1
Refresh rate: 0.5S
High temperature protection 0-110
Supply voltage: for DC 12V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: for DC 12V
Output power: 10A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Environmental requirements: -10 ~ 60 Humidity 20% -85%

Functional Digram:

Relay Pin Settings

Package Include:

1x  W1209 Temperature Thermistor Controller On/Off Switch -50-110C
