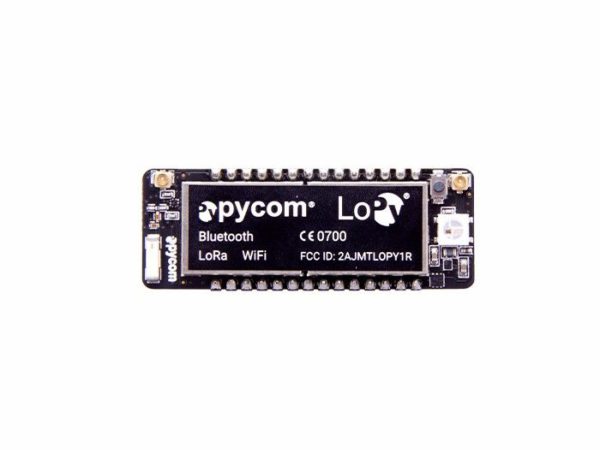

Pycom LoPy MicroPython enabled development board (LoRa, WiFi, Bluetooth)

8000

Availability: Out of stock

Description

With LoRa, Wifi and BLE, the LoPy is the only triple bearer MicroPython enabled micro controller on the market today – the perfect enterprise grade IoT platform for your connected Things. With the latest Espressif chipset the LoPy offers a perfect combination of power, friendliness and flexibility. Create and connect your things everywhere, and FAST.

Features

  • Powerful CPU, BLE and state of the art WiFi radio. 1KM Wifi Range
  • Can also double up as a Nano LoRa gateway
  • MicroPython enabled, the Linux of IoT for fast deployment
  • Fits in a standard breadboard (with headers)
  • Ultra-low power usage: a fraction compared to other connected micro controllers

Specification

Processing

  • Espressif ESP32 chipset
  • Dual processor + WiFi radio System on Chip.
  • Network processor handles the WiFi connectivity and the IPv6 stack.
  • Main processor is entirely free to run the user application.
  • An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA.

Operating Frequencies

  • 868 MHz (Europe) at +14dBm maximum
  • 915 MHz (North and South America, Australia and New Zealand) at +20dBm maximum

Range Specification

  • Node range: Up to 40km
  • Nano-Gateway: Up to 22km
  • Nano-Gateway Capacity: Up to 100 nodes

Interfaces

  • 2 x UART, 2 x SPI, I2C, I2S, micro SD card
  • Analog channels: 8×12 it ADCs
  • Timers: 4×16 bit with PWM and input capture
  • DMA on all peripherals
  • GPIO: Up to 24

Security and Certifications

  • SSL/TLS support
  • WPA Enterprise security
  • FCC – 2AJMTWIPY2R
  • CE 0700

Memory

  • RAM: 512KB
  • External flash 4MB
  • Hardware floating point acceleration
  • Python multi-threading

Hash / encryption

  • SHA, MD5, DES, AES

Wifi

  • 802.11b/g/n 16 mbps

Bluetooth

  • Low energy and classic

RTC

  • Running at 32KHz

Power

  • Input: 3.3V – 5.5V
  • 3v3 output capable of sourcing up to 400mA
  • Wi-Fi: 12mA in active mode, 5uA standby
  • Lora: 15mA in active mode, 1-0uA in standby

LoRa Specification

  • Semtech LoRa transceiver SX1272
  • LoRaWAN stack
  • Class A and C devices

Package Include:

1x Pycom LoPy MicroPython enabled development board (LoRa, WiFi, Bluetooth)
