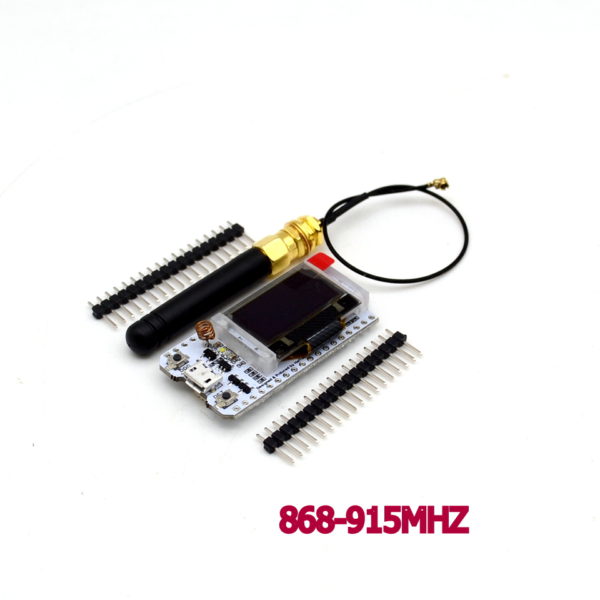

868MHz/915MHz LoRa ESP32 Blue oled Wifi SX1276 Module IOT Development Board with Antenna
₨4900
- Description
- Reviews (0)
Description
Description
Description:
Dominant Frequency: 240MHZ
Flash: 32M-Bits
Processor: Tensilica LX6 Dual Core
Master chip: ESP32
LoRa chip: SX1276
Support frequency band: 868-915MHZ
Open communication distance: 2.8KM
Computing capacity: up to 600DMIPS
Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth
Development environment: perfect support for Arduino
Operating voltage: 3.3-7V
Operating temperature range: -40-90 °
Receiver sensitivity: -139dBm (SF12, 125KHZ)
UDP continuous throughput: 135Mbps
USB adapter chip: CP2102
Support mode: Sniffer, Station, softAP and Wi-Fi Direct
Transmit power: 19.5dBm@11b, 16.5dBm@11g, 15.5dBm@11n
Data rate: 150Mbps @ 11n HT40, 72Mbps @ 11n HT20,
54Mbps @ 11g, 11Mbps @ 11b
Flash: 32M-Bits
Processor: Tensilica LX6 Dual Core
Master chip: ESP32
LoRa chip: SX1276
Support frequency band: 868-915MHZ
Open communication distance: 2.8KM
Computing capacity: up to 600DMIPS
Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth
Development environment: perfect support for Arduino
Operating voltage: 3.3-7V
Operating temperature range: -40-90 °
Receiver sensitivity: -139dBm (SF12, 125KHZ)
UDP continuous throughput: 135Mbps
USB adapter chip: CP2102
Support mode: Sniffer, Station, softAP and Wi-Fi Direct
Transmit power: 19.5dBm@11b, 16.5dBm@11g, 15.5dBm@11n
Data rate: 150Mbps @ 11n HT40, 72Mbps @ 11n HT20,
54Mbps @ 11g, 11Mbps @ 11b
Package Include:
1x 868MHz/915MHz LoRa ESP32 Blue oled Wifi SX1276 Module IOT Development Board with Antenna
