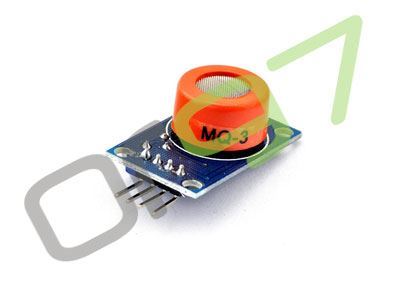

MQ-3 Alcohol Detector sensor Module

Description

This alcohol sensor is suitable for detecting alcohol concentration on your breath, just like your common breathalyzer. It has a high sensitivity and fast response time. Sensor provides an analog resistive output based on alcohol concentration. The drive circuit is very simple, all it needs is one resistor. A simple interface could be a 0-3.3V ADC.

MQ-3 MQ3 Alcohol Sensor Module Breath Gas Detector Ethanol Detection
Specifications:
Input voltage: DC5V
Power consumption (current) : 150 mA
DO output: TTL digital 1 and 0 (0.1 and 5 V)
AO output: 0.1-0.3 V (pollution-free)
Highest concentration of voltage: Approx 4 V
Detection range of alcohol: detection range of 10 ~ 1000 PPM

Connection mode:
1. VCC: Positive (5 v)
2. GND: Connect power negative
3. DO: TTL switch signal output
4. AO: Analog signal output

Package Include:

1x MQ-3 Alcohol Detector sensor Module
