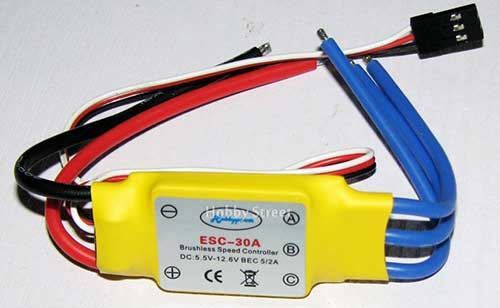

30A Brushless ESC

Description

Specification:

30A Brushless ESC
1.1 Output: Continuous 30A, Burst 40A up to 10 Secs.
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC: 2A / 5V (Linear mode).
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: BrushLess Motor)
1.5 Size: 45mm (L) * 24mm (W) * 11mm (H).
1.6 Weight: 25g.

Features:
2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
2.3 Programmable Items:
-Brake Setting: brake enabled / brake disabled.

-Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).

-Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.

-Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.

-Start Mode: normal / soft / very soft.

-Timing: low / medium / high.

-Reset: reset all the programmable items to their default settings.

2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection

Package Include:

1x 30A Brushless ESC
